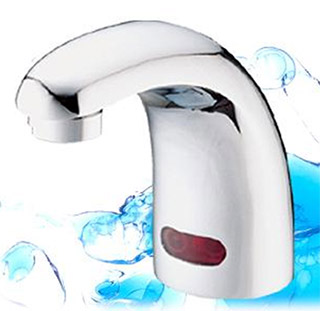

| HTS-520 |

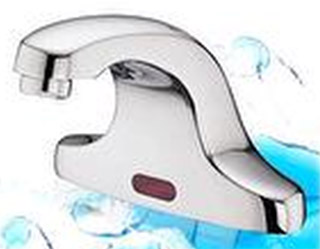

HTS-550 |
 |
 |
| |
Advantage: |
| 1. |
If the battery is to run low, a red LED indicator will flash. |
| 2. |
If the battery needs replacement, the red LED indicator remains lit. |
| 3. |
Under normal circumstances, fresh batteries would allow the faucet to go through at least 500,000 open/close cycles before needing battery replacement. |
| |
|
|
| |
|

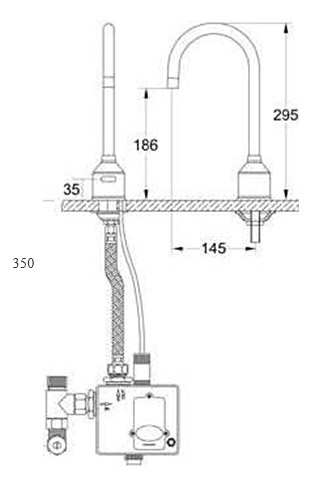

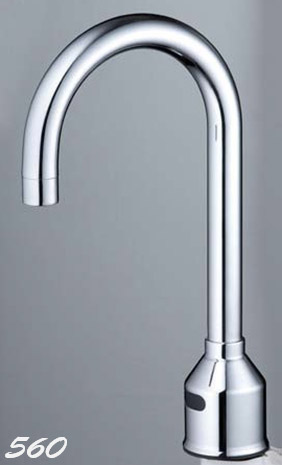

| HTS-560 |

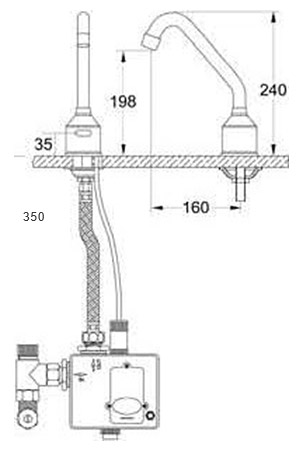

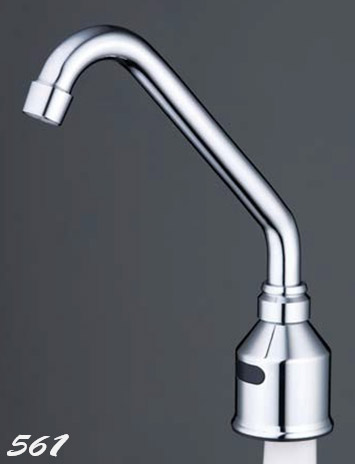

HTS-561 |

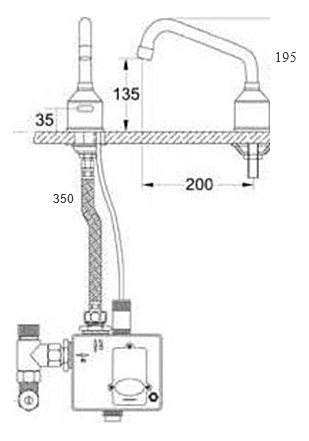

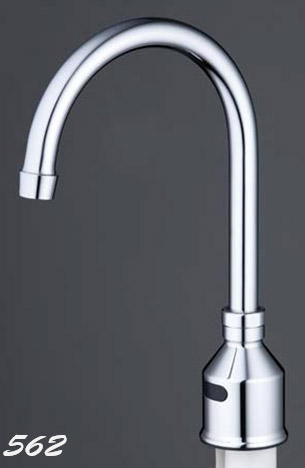

HTS-562 |

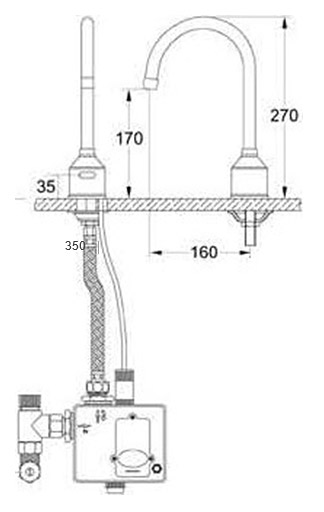

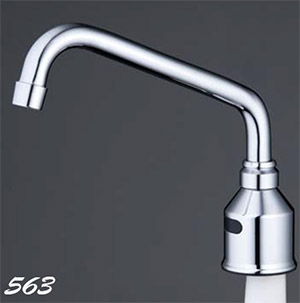

HTS-563 |
 |
 |
 |
 |
| |
Features |
 |
| |
LED battery warning indicator.
Swivel swan neck.
Battery life expectancy:
Guaranteed: 500,000 cycles.
Tested over 1,000,000 cycles.

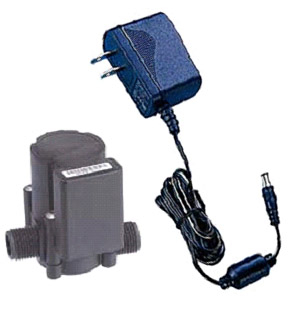

Optional AC/DC adaptor. You’ll no longer have to worry
about replacing the batteries.
Optional Hydro-Generator. No wiring or outlet required.
Automatically charges the batteries every time water is opened.
Optional mixing valve, CYS-660, available.
Optional thermostatic mixing valve, TP-603, available. |
|
 |
 |
 |
 |
| |
Specifications |
| |
Body: Chrome Plated Solid Brass
Power: i>DC AA Alkaline Battery x 4 ii>AC Adapter
Operating Water Pressure: 0.2"'15 kg/cm2
Water Inlet Pipe Size: NPSM 1/2 or 1/4
Ambient Working Temperature: 2"'90 oC Sensing Range: 2"'17 cm (factory default 14cm) Sensing Range Setup: Digital
Response Time: 0.3 sec
Close Water Delay Time: 1sec |
|
| |
|
|
|

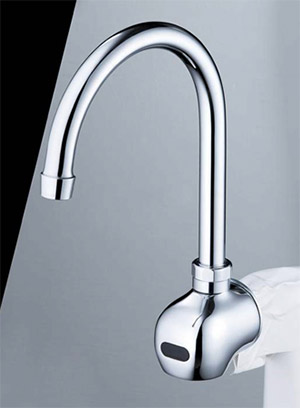

| HTS-640 |
 |
The HTS-640 is an Automatic Faucet that is wall mounted and most suitable for places where users need more vertical clearance.
The HTS-640 is most suitable for: kitchens, bathroom lavatory
|
|
| Features: |
 |
Battery life expectancy:
Guaranteed: 500,000 cycles.
(Tested over 1,000,000 cycles) |
 |
Low battery LED indicator |
 |
Optional AC/DC adaptor.
You’ll no longer have to worry about replacing the batteries. |
 |
Optional Hydro-Generator.
No wiring or power outlet required. Automatically charges the batteries every time water is opened. |
 |
Optional CYS-660 mixing valve. Give your users warm water. |
 |
Optional TP-603 thermostatic mixing valve.
Give your users warm water without worrying about chilling, scalding, or pressure loss.
|
 |
Variety of different spouts available. |
| Specifications |
| Body: |
Chrome Plated Solid Brass (Other finishes available) |
| Power: |
i > DC AA Alkaline Battery x 4 |
| |
ii > AC Adapter |
| |
iii > Hydro-generator |
| Operating Water Pressure: 0.2~15 kg/cm2 |
| Water Inlet Pipe Size: NPSM 1/2 or 1/4 |
| Ambient Working Temperature: 2~90 oC |
| Sensing Range: 2~17 cm (factory default 14cm) |
| Response T ime: 0.3 sec |
| Close Water Delay T ime: 1 sec |
|
|
|
